10T Electric Rail Transfer Car With Lifting Table For Crane Parts Handling Cable Drum Powered

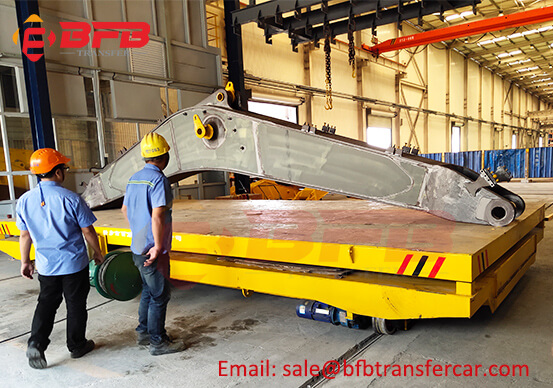

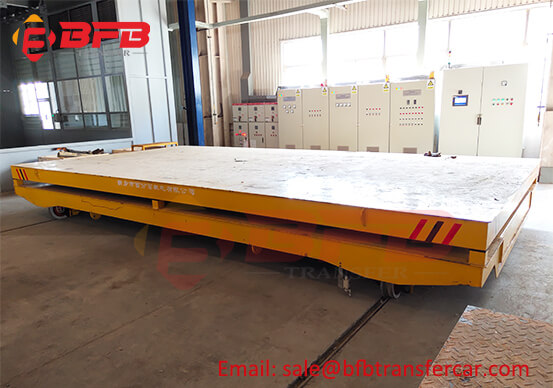

1 set 10t rail transfer cart with lifting table has been shipped to Liuzhou City, our customer is a manufacturing and exporter company for crane and crane parts, they placed the order for manufacturing workshop crane steel parts handling, due to manufacturing demand in workshop, the rail transfer car should realize the function of lifting. As per the 70m running distance, the cable drum powered are recommended which can not only save the cost but be environmental.
Technical Parameter of Electric Rail Transfer Car With Lifting Table:
1. Capacity: 10t
2. Boundary Dimension: 3600*7000*800mm
3. Rail Inner gauge: 5949mm
4. Max Wheel Load: 44.8KN
5. Wheel Diameter: 300mm
6. Rail Type: P24
7. Running Speed: 0-20m/min
8. Control Method: Hand Pendant + Remote Control
9. Warranty: 12 Months
