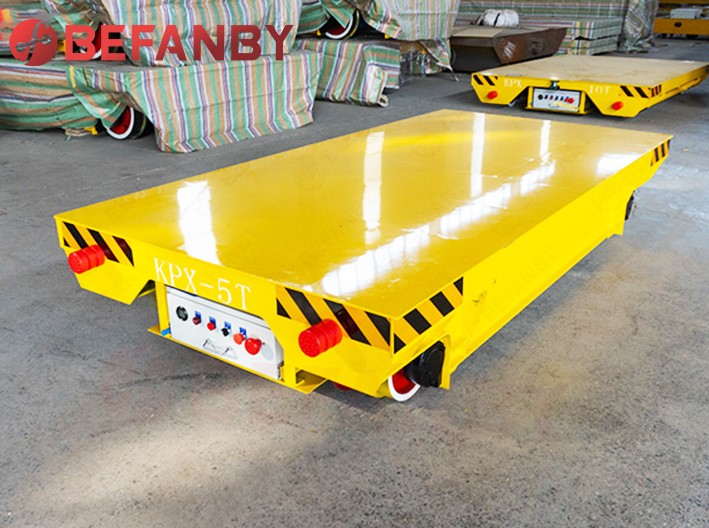

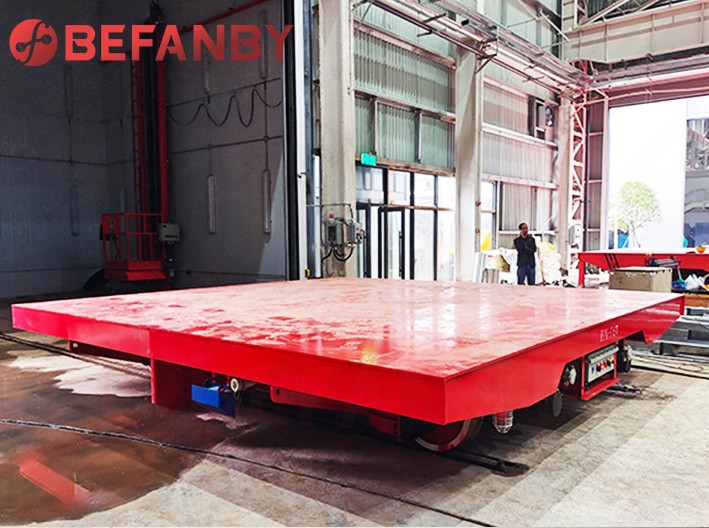

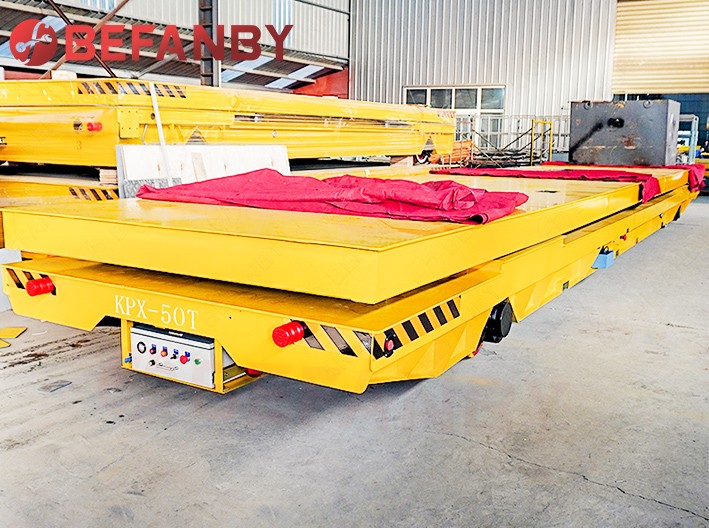

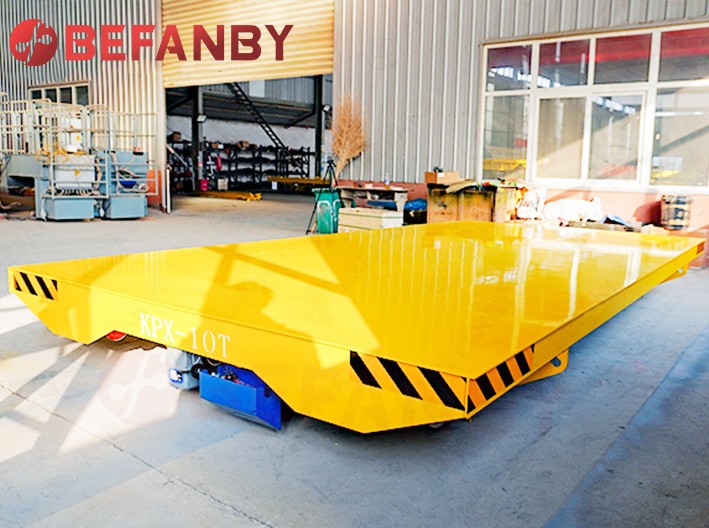

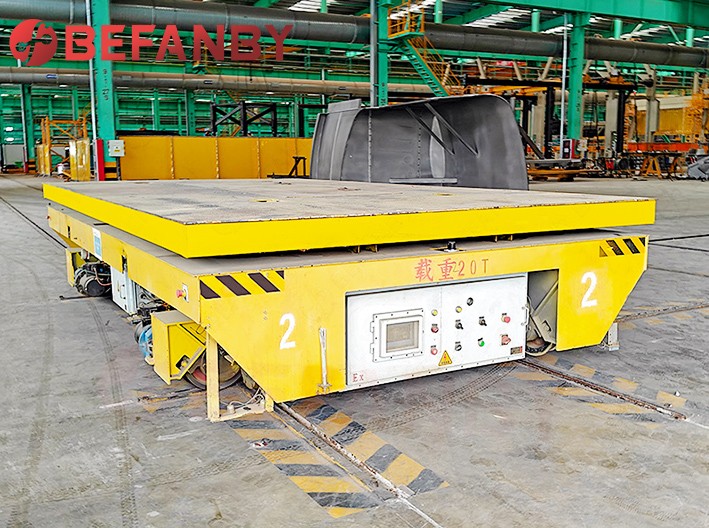

Battery Power Transfer Car
The transfer car is also known as a track flat cart, an over-span transfer cart, and an electric transport trolley.
- Warranty: 2 Years
- Capacity: 1-1,500 tons
- Certificate: CE SGS ISO9001, SASO
- OEM: Support
- Vulnerable Parts: Give as gifts
- Advantage: peculiar set-up makes the transfer cart save cost and operate more conveniently
The transfer car is also known as a track flat cart, an over-span transfer cart, and an electric transport trolley. The invention has the advantages of simple structure, convenient operation, easy maintenance, large load capacity, less pollution, etc.
The battery power transfer car has been a hot and mature material transfer equipment.It has become a new favorite in industry transport field around the world, which will work together with the crane for workshop handling and promote the working efficiency.
The transfer car is powered by maintenance free battery, which is installed in the cars, the battery conduct the power to the dc motor by the electrical control system. The transfer car can start, stop, go forward, backward, etc. by this principle.
1.Capacity up to 1,500 tons
2.Maintenance Free Battery(Reducing maintenance)
3.Intelligent Charger(Low noise, rapid charge, automated stop, prolong the battery’s lifetime)
4.Low battery alarm device. It will alarm, when the battery power is too low.
5.4 hours charging time
6.Continuous working 8 hours if empty transport
7.Times of charge and discharge over 1000
8.Sturdy Frame(non-deformable, adopts box girder structure) Adjust Speed
9.DC Motor(Soft Start)
10.Optional Operation Ways(Radio / Hand Pendant / Cabin)
11.Customized Special Function(Lifting deck, Turning, Weighing system, Titling, Climbing )
12.PLC, RGV Support
| Technical Parameter of KPX Series Battery Power Transfer Cart | ||||||||||||||
| Model | KPX-2T | kpx-5T | KPX-10T | KPX-16T | KPX-20T | KPX-25T | KPX-30T | KPX-40T | KPX-50T | KPX-63T | KPX-80T | KPX-100T | KPX-150 | |
| Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
| Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Heigth(H) | 450 | 500 | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rai lnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Dia. (mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | Φ600 | Φ600重 | Φ600 | |
| Wheel Quantity(pcs） | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(mm) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw） | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | |
| Batter Capacity(Ah) | 180 | 180 | 160 | 180 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
| Battery Voltage(V） | 24 | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 5.4 | 4.8 | 4.3 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3 | 3.6 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 8.1 | 7.2 | 5.1 | 4.8 | 4.8 | 4.2 | 4.3 | 4 | 3.6 | 4.3 | 3.8 | 3.2 | |
| Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Wight(t) | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 | |
