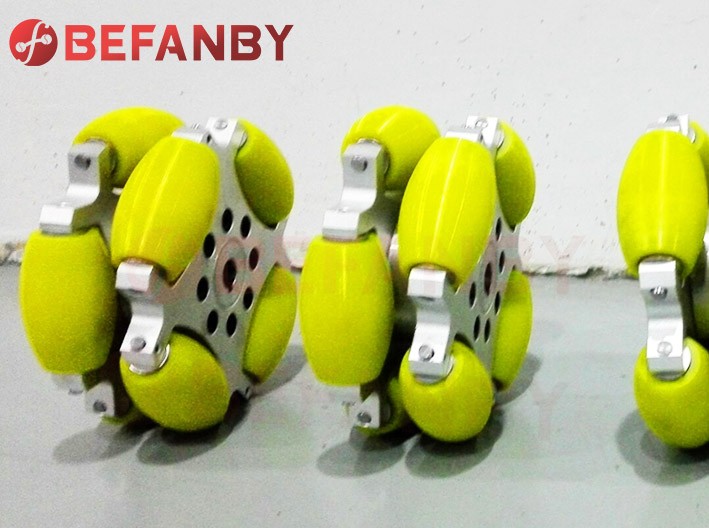

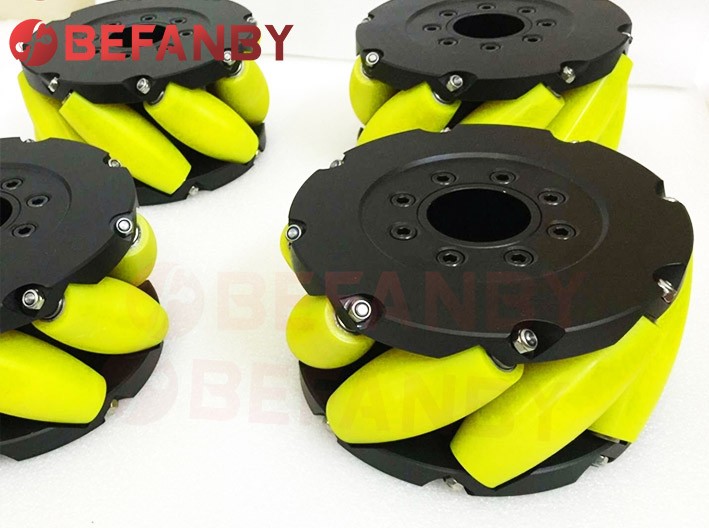

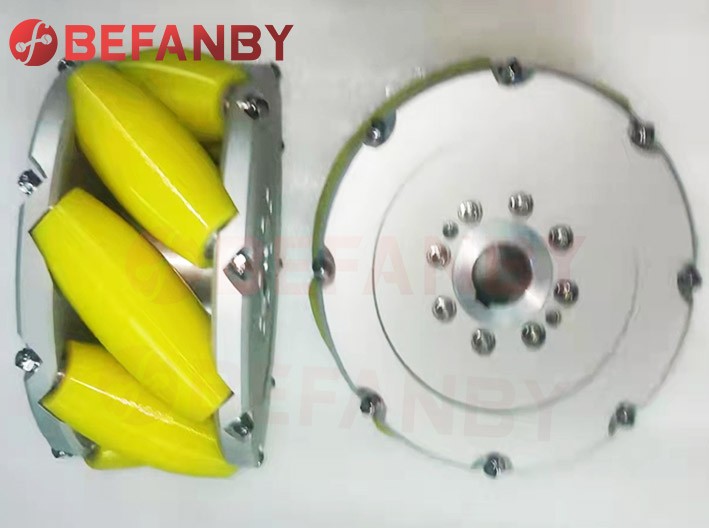

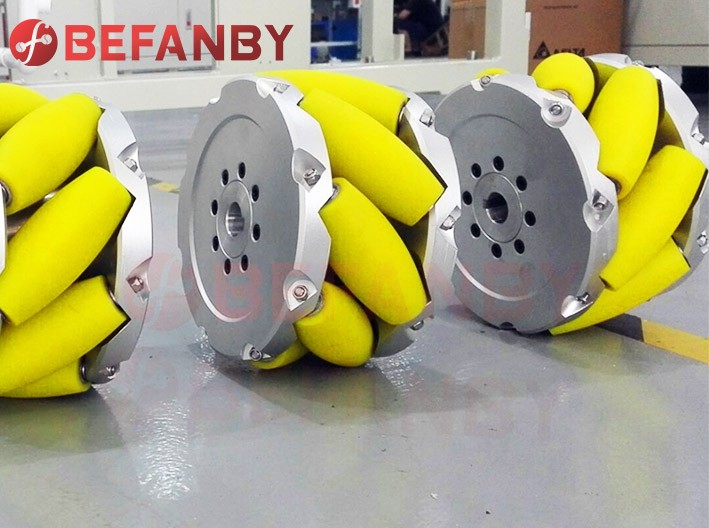

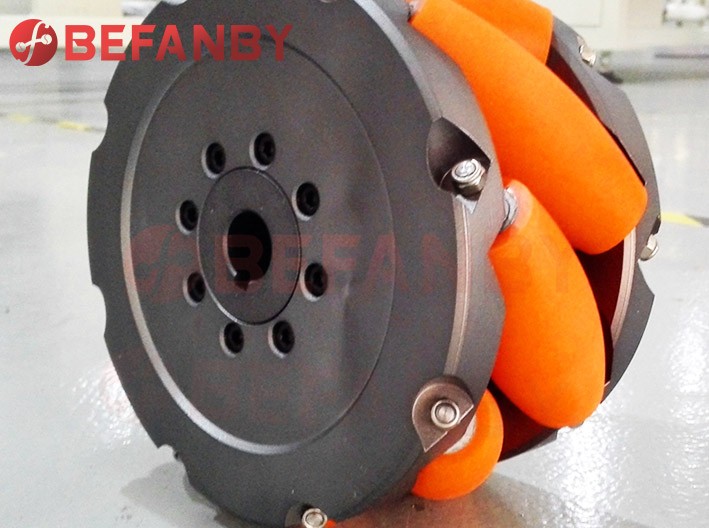

Mecanum Wheel
BEFANBY can customized all kinds of wheels, including omni wheel, stainless steel mecanum wheels, aluminum alloy mecanum wheels, etc.
- Warranty: 2 Years
- Size: Customized on request
- Certificate: CE SGS ISO9001, SASO
- Material: Steel, Polyurethane, Iron, Rubber
Mecanum wheel, the wheel hub is integrally processed and formed by a five-axis machining center, which maximizes the strength and accuracy of the whole wheel. According to different loads, a more matching sliding bearing or needle bearing design is selected. The driven wheel is made of imported polyurethane material, Advanced integrated molding encapsulation technology, stronger bearing capacity, and can be used in various indoor and outdoor applications, without wearing the ground.
High intensity
High stiffness
Rolling bearing
Payload between 0-4500KG
Industrial-grade quality
All-round movement, forward, backward, horizontal movement
The whole is smooth and polished, and it can be used smoothly and improve work efficiency
Support customize
| Model | M15-150 | M20-500 | M25-800 | M31-1000 | M35-1800 | M40-2500 | M50-3000 | M50-4000 | M55-5000 |
| Measured diameter(mm) | 151(6”) | 203(8”) | 260(10”) | 314(12”) | 355(14”) | 406(16”) | 457(18”) | 508(20”) | 558(22”) |
| Width(mm) | 75 | 105 | 128 | 158 | 187 | 209 | 230 | 255 | 270 |
| Pour round number(PC) | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Bearing type | Sliding bearing | Needle bearing | |||||||
| Roller material | Polyurethane (PU) | ||||||||
| Wheel hub material | 45 # steel | Aviation aluminum 7075 | |||||||
| Roller core material | 45 # steel | Aviation aluminum 7075 | |||||||
| Wheel hub surface treatment | Electro nickelling | Surface anodizing | |||||||
| Type of connection | Shaft cover + keyway | Flange | |||||||
| Dead weight(kg) | 4.15 | 13.16 | 27.95 | 45 | 30.15 | 45.5 | 64.5 | 87.5 | 116.5 |
| Single wheel load(kg) | 150 | 500 | 800 | 1000 | 1800 | 2500 | 3000 | 4000 | 5000 |
| Four wheel load(kg) | 500 | 1500 | 2500 | 3500 | 6000 | 8000 | 10000 | 13000 | 15000 |
| Note: The above parameters are for reference only, according to the actual signed technical agreement configuration prevail, can undertake non-standard customization. | |||||||||
