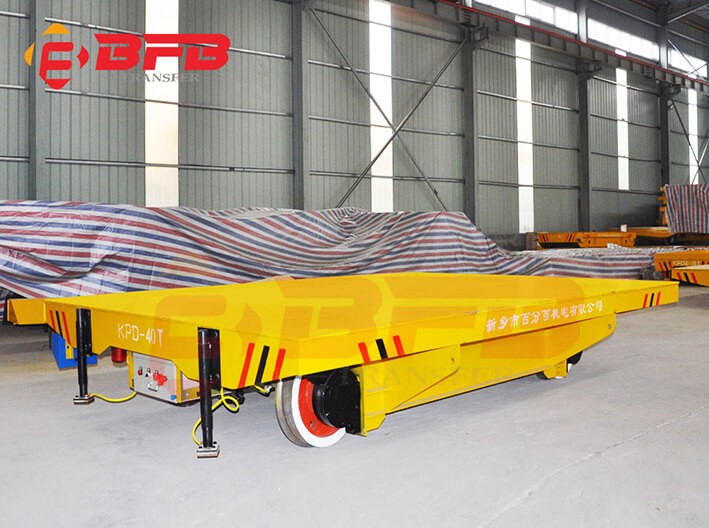

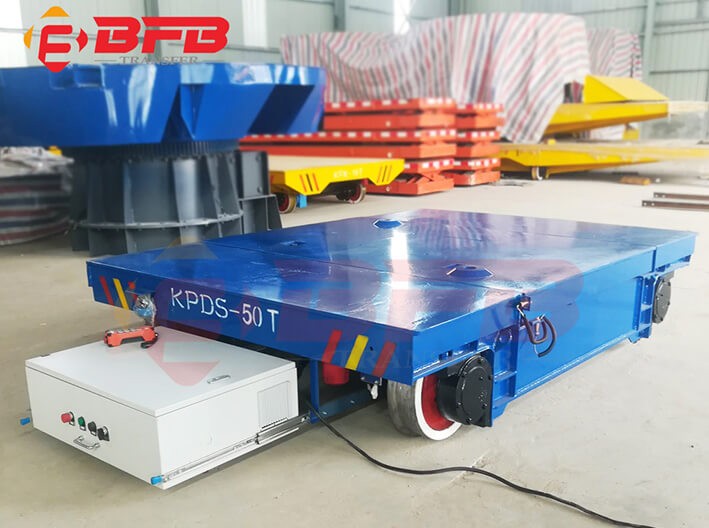

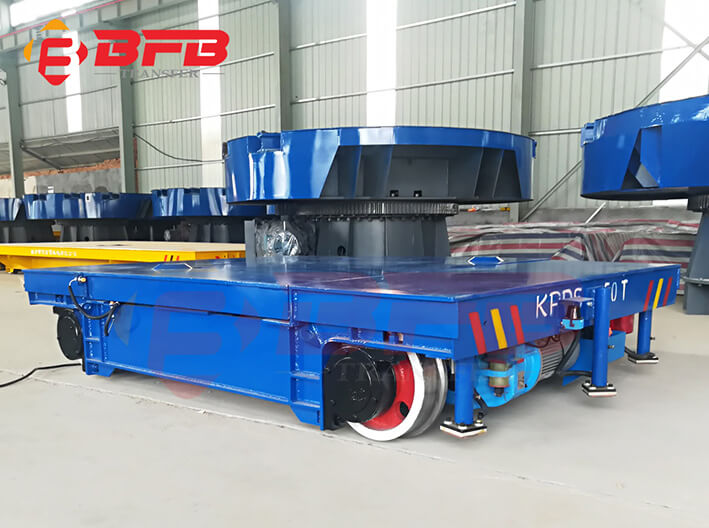

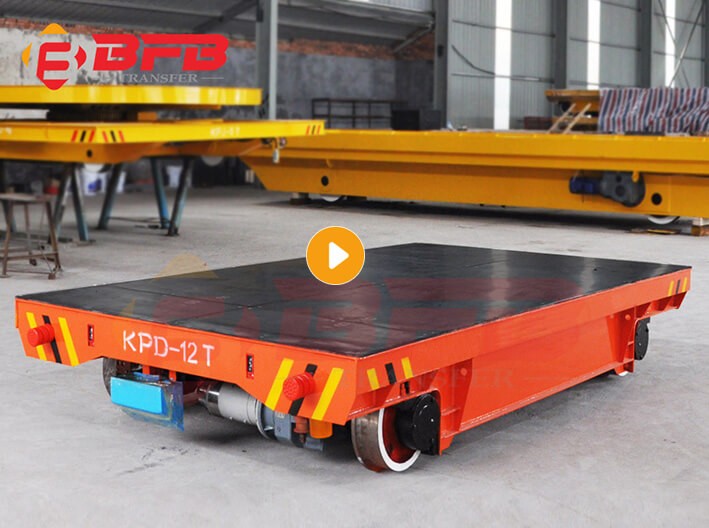

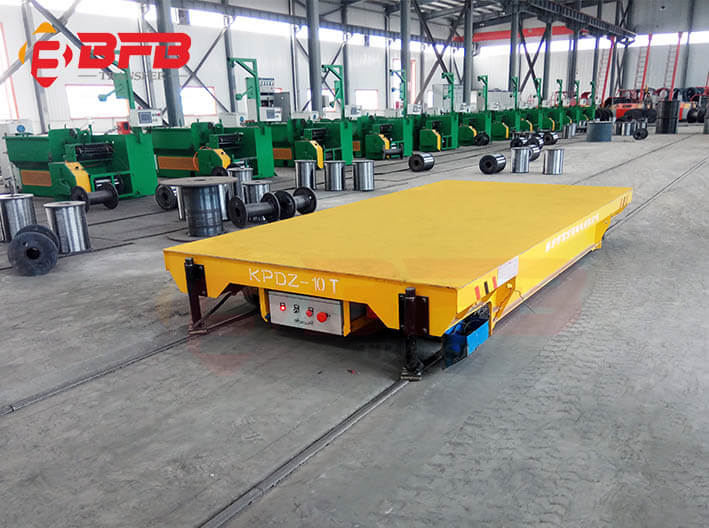

Electric Transfer Cart
Electric Transfer Cart
Electric Transfer Cart
Electric Transfer Cart
Electric Transfer Cart
Electric Transfer Cart
Electric Transfer Cart
Electric Transfer Cart
Electric Transfer Cart

Electric Transfer Cart

The electric transfer cart is powered by the low voltage rails, which have been insulated, the ground control box input the electricity and guide it to the two/three insulated rails.

Remark:BEFANBY can customize all kinds of material handling equipment such as rail transfer cart, trackless transfer cart, AGV, trailer, etc. You can click on the PRODUCT PAGE to view. Or CONTACT US!
Warranty: 2 Years
Capacity: 1-1,500 tons
Certificate: CE SGS ISO9001, SASO
OEM: Support
Vulnerable Parts: Give as gifts
Advantage: peculiar set-up makes the transfer cart save cost and operate more conveniently
Product Description

The electric transfer cart is powered by the low voltage rails, which have been insulated, the ground control box input the electricity and guide it to the two/three insulated rails, then the insulated wheels conduct the electricity from the rails into the electrical appliance box installed on the bottom of the carts so that control the transfer cart to start, stop, go forward and backward and adjust the speed etc. by operating the hand pendant / remote control.

Main Feature :

1.The rail and wheel are insulated so that the safety can be guaranteed;

2.Low voltage rails guided(selectable power source )

3.Customized capacity 1 - 1,000 tons

4.Installed conductive column to promote conductivity

5.Speed Adjustable

6.DC / AC Motor

7.Turning can be realized(C rails, arc-shaped rails, S rails, etc.)

8.All kinds of environment(high temperature, dust,etc. )

9.Safe device(E-stop, dead man stop, buffer, Sound&light alarm, lamp, etc.)

10.Easy operation and maintenance

11. Low noise and Environmental

12.Optional wireless remote control operation

13.All solution can be provided as per the customers’ working site.



Applications of Electric Transfer Cart:

The electric transfer cart can be mainly applied in production line(ring production line, loop production line),foundry industry(mold),warehouse transport, ship industry(maintenance, assembly, container transport),work piece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel structure, steel ladle, steel scrap),construction (bridge, simple building, concrete column,)petroleum industry(oil pump, sucker rod and parts),energy(polycrystalline silicon, generator, windmill),chemical industry(electrolytic cell, retort etc.),military industry(Military equipment),railway(rail maintenance, rail welding, train tractor), etc.

  • Rail Electric Transfer Cart

    foundry factory

  • Workshop Electric Transfer Cart

    warehouse

  • Foundry Plant Electric Transfer Cart

    steel plant

  • Coil Electric Transfer Cart

    aluminum factory

  • Pipe Electric Transfer Cart

    plastic pipes factory

  • Custom Electric Transfer Cart

    metallurgy

  • Electric Transfer Cart Manufacturer

    shipyard

  • Heavy Duty Electric Transfer Cart

    coal

  • Railroad Electric Transfer Cart

    mining

  • Low Voltage Rail Power Electric Transfer Cart

    processing industries

Parts
Electric Transfer Cart On Rails

Remark: BEFANBY can customize all kinds of material handling equipment such as rail transfer cart, trackless transfer cart, AGV, trailer, etc. You can click on the PRODUCT PAGE to view. Or CONTACT US!

Product parameters
Technical Parameter of KPD Series Electric Transfer Cart
Model KPD-2T KPD-5T KPD-10T KPD-16T KPD-20T KPD-25T KPD-30T KPD-40T KPD-50T KPD-63T
Rated load(t) 2 5 10 16 20 25 30 40 50 63
Table Size Length(L) 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600
Width(W) 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500
Heigth(H) 450 450 500 500 550 600 600 650 650 750
Wheel Base(mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300
Rai lnner Gauge(mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435
Wheel Dia.(mm) Φ270 Φ300 Φ300 Φ350 Φ350 Φ400 Φ400 Φ500 Φ500 Φ600
Wheel Quantity(pcs) 4 4 4 4 4 4 4 4 4 4
Ground Clearance(mm) 50 50 50 50 50 50 50 50 50 50
Running Speed(mm) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20
Motor Power(kw) 1 1.2 1.6 2 2.2 3 3.5 4 5 6.3
Transformer 3 5 5 6.8 6.8 6.8 10 10 10 20
Transformer Quantity(个) 1 1 1 1 1 1 1 1 1 1
Running distance 80 80 80 80 80 80 80 60 50 50
Max Wheel load(KN) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4
Reference Wight(t) 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 8 10.8
Recommend Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50
