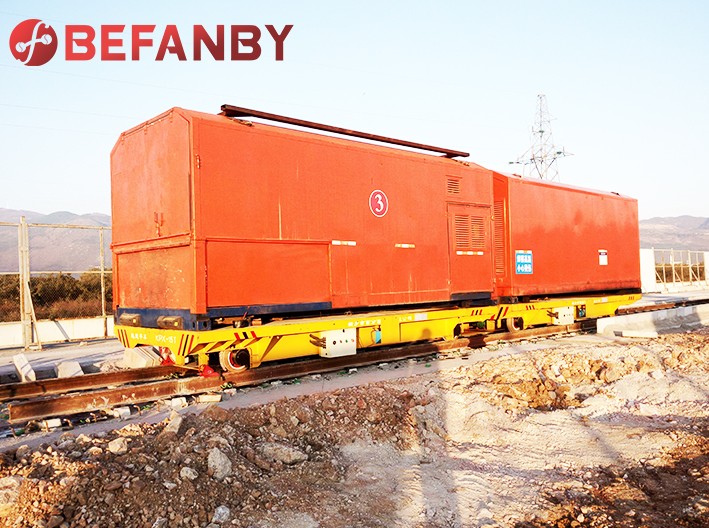

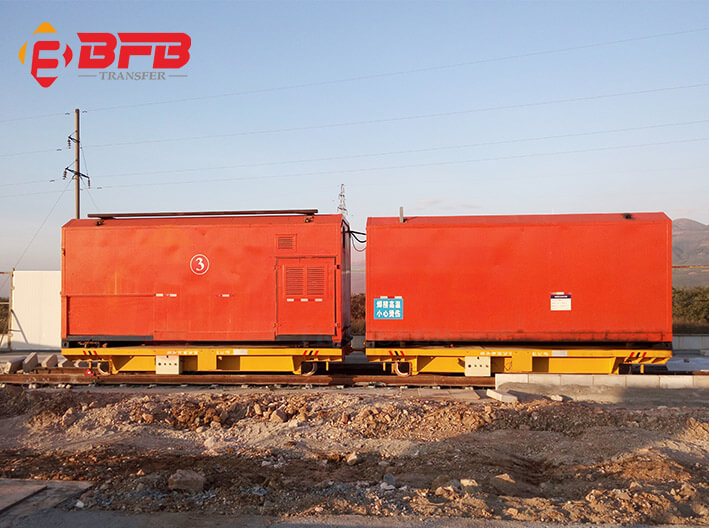

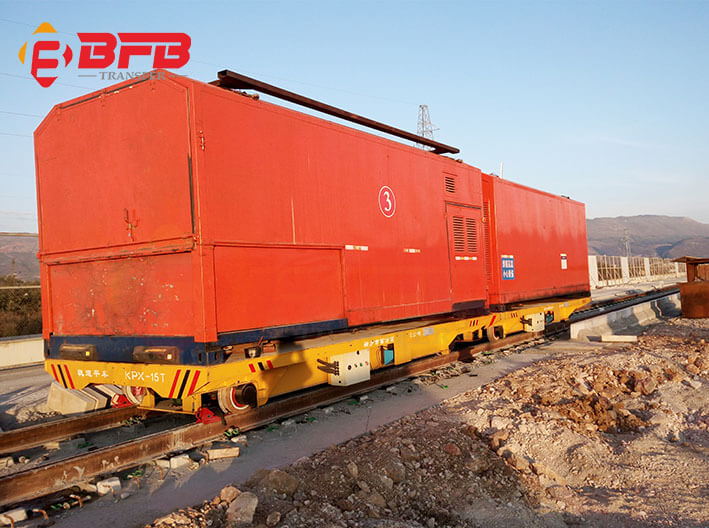

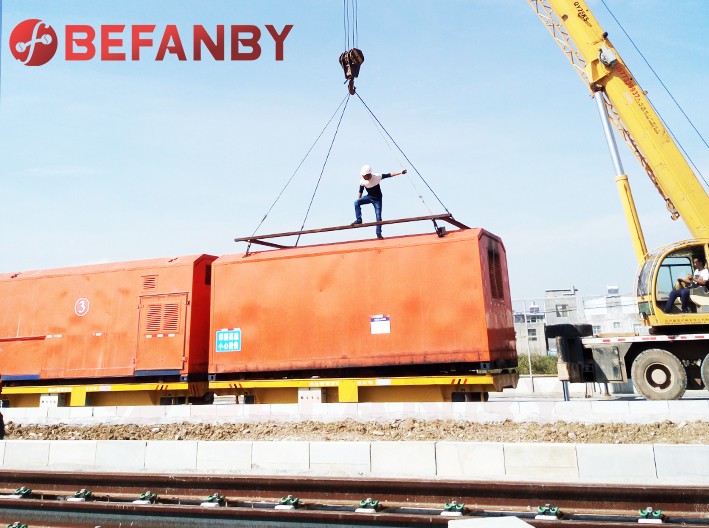

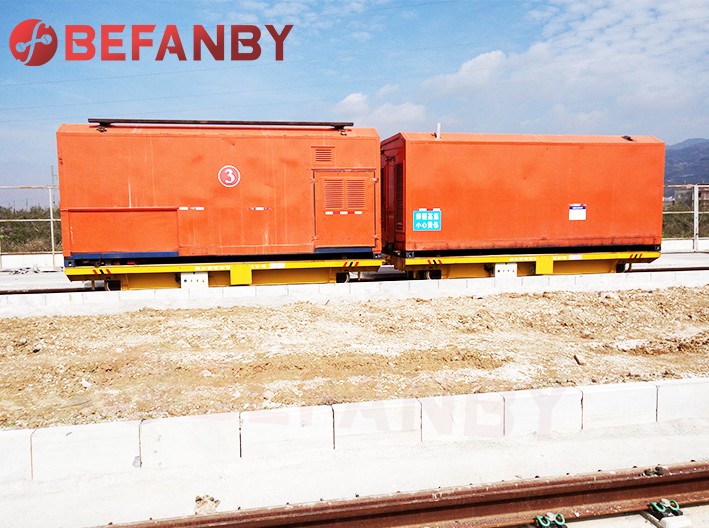

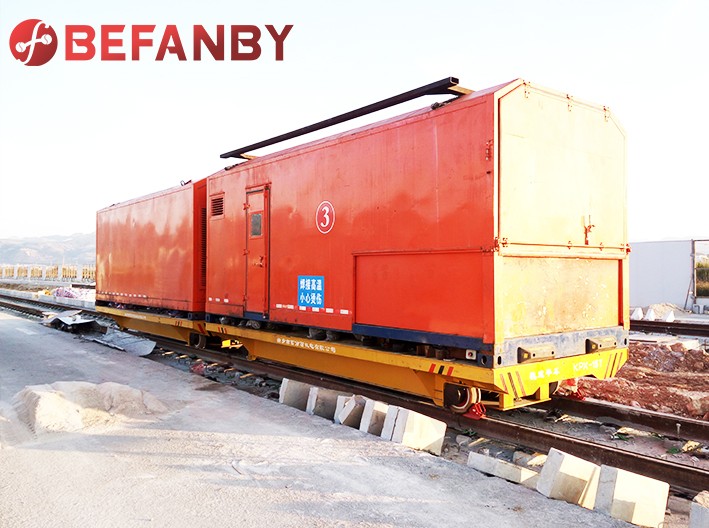

Transfer Cart Towing Together
In order to provide the working frequency, many transfer carts run on the same rails together to realize the machine handling, there are two methods to realize it
- OEM: Support
- Vulnerable Parts: Give as gifts
- Warranty: 24 Months
- Delivery Time: 30-40 working days
In order to provide the working frequency, many transfer carts run on the same rails together to realize the machine handling, there are two methods to realize it:
1.Installed the towing hook to make these transfer carts connected together.
2..Single-issue dual-receiver remote control to control the transfer cart run together with same space.
1.Support One-Stop Solution
2.Customized Solution On Request
3.Load Capacity reach to 1-1,500 tons can be customized on request.
4.Customized Power source
5. Safe bearing factor reach to 150%
6. All transfer cart with safety control system.
7. Stout steel frame.(adopt the box girder structure)
8. Free provide customized handling solution
9. Automated operation and transportation system are support
10. DC & AC motor supported
| Technical Parameter Of Transfer Cart Towing Together | ||
| Model | KPX | Remark |
| QTY | 2 SETS | |
| Application | Large welding machine | |
| Load Capacity (T) | 15 | Custom Capacity over 1,500T |
| Table Size (mm) | 6050(L)*2438(W)*600(H) | Box Girder Structure |
| Rail Center Gauge (mm) | 1435 | |
| Power Supply | Battery Power | Intelligent Charger are equipped |
| Motor Power(KW) | 5.5 | |
| Motor | DC Motor | Soft Start |
| Running Speed(m/min) | 0-30 | Adjusted Speed |
| BatteryPower(V) | DC48 | |
| Wheel Dia.(mm) | 400 | ZG55 Material |
| Running Distance(M) | 100 | |
| Recommend Rail | P24 | |
| Color | Yellow | Customized Color |
| Operation Type | Hand Pendant + Remote Control | |
| Special Function |
1. Add towing hook 2.Outdoor railway transport |
|
